X-10 Pump

The X-10 is our ultra-high pressure swing tube piston pump designed for refractory and shotcrete applications requiring as much as 12 cubic yards per hour. We designed the pump to be user-friendly and easy to operate and maintain. The X-10 includes our simple swing-out hopper for fast access to the swing tube section for cleaning and maintenance. It also features a rugged receiving hopper agitator, forklift tubing mounted to the lower hopper for easy flat pack removal, and reliable, solid-state electronics. The 2,200 PSI piston face pressure allows you to pump material further than any competitive equipment.

Features

  • Faster return on investment than competitive units
  • 2,200 PSI (151 bar) piston face pressure for rugged refractory pump cast and shotcrete applications
  • Simple swing-out receiving hopper for easy access to swing tube section for cleaning and maintenance
  • Forklift tubing mounted to lower hopper for easy flat pack removal
  • Reliable solid state electronics
  • CE certification

Applications

  • Refractories
  • ⅜-inch (10 mm) aggregate shotcrete
  • Precision high pressure grouting
  • Faux rock construction
  • Slab jacking
  • Block fill

Specifications

Pump 3” x 24” Swing Tube (75 mm x 600 mm)
Pump pressure2,200 PSI (152 bar)
Output 0-12 yd³/hr. (9 m³/hr.)
Discharge 3” (75mm)
Hopper
  • Swing-out receiving hopper with hydraulic agitator
  • 2,500 lb. Capacity (1,130 kg)
    Electrical Solid state value control
    Trailer axles Single 7,000 lb. capacity (3,175 kg)
    Trailer Electric braking and lights
    Length156” (396 cm)
    Width76” (200 cm)
    Height80” (203 cm)
    Weight 4,500 lbs. (2,041 kg)

    Options

    • 2,000 psi (138 bar) hydraulic pressure washer
    • Automatic lubrication system
    • Spare tire
    • Pendant or wireless remote
    • Skid-mounted with forklift tubing

    • Power Options

    • Kubota V3600 66-HP Kubota water-cooled diesel engine
    • 40-HP electric motor

    Photo Gallery

    • X-10 ultra-high pressure Pump

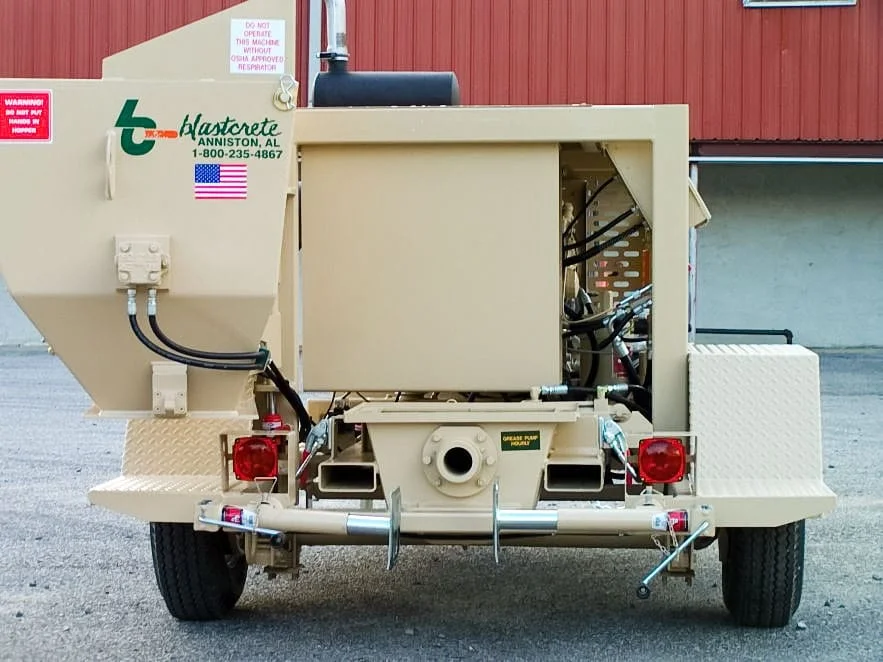

      X-10 Pump
    • Swing-Out Hopper
      Swing Out Hopper
    • X-10 Skid Mount

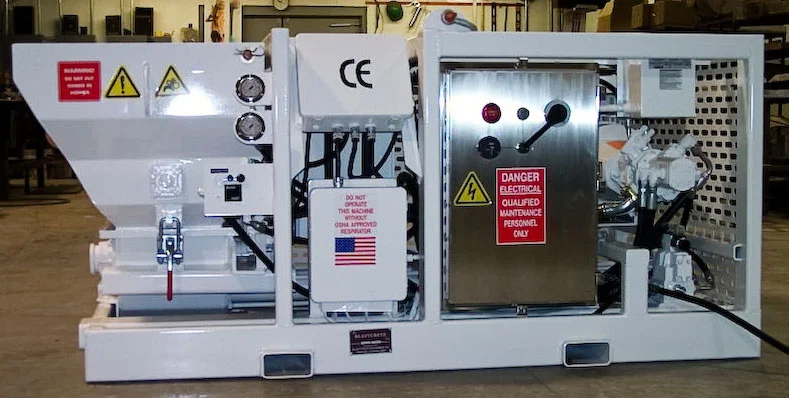

      Skid Mount Front View
    • X-10 Skid Mount

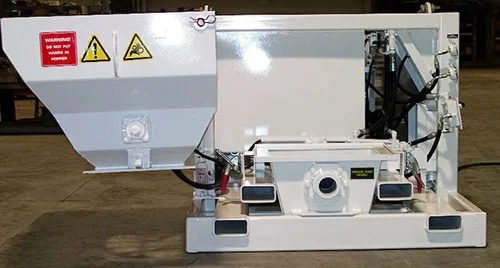

      Skid Mount Side View
    • Shotcrete Application
      Shotcrete Application
